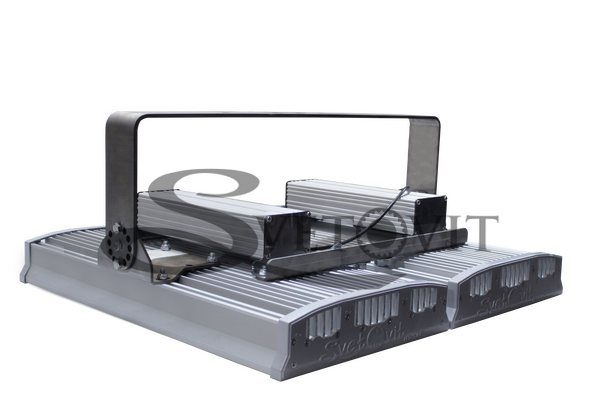

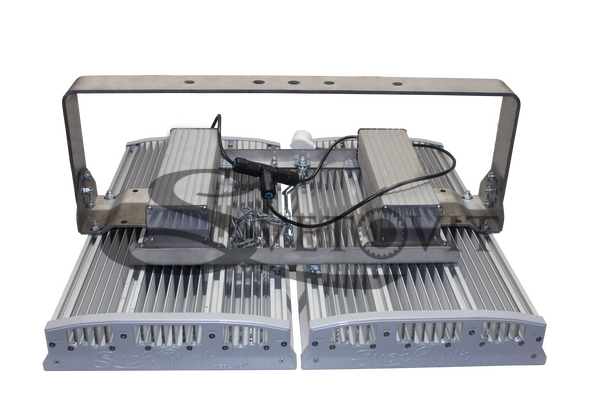

Name: LED-SVU-P-W2 GRAND MAX 2M CENTRE

ArticleID: 5349

The floodlight can be used for architectural lighting of buildings and structures, security lighting, illumination of billboards and shop windows, for lighting of warehouses and industrial premises, facades, buildings, exhibition complexes, closed parking lots, etc.

  • ...

    LEDs

  • ...

    Degree of protection

  • ...

    No flicker

  • ...

    It does not contain mercury

  • ...

    Without recycling of naste

  • ...

    I class of protection against electric shock

  • ...

    Color rendering index

  • Resistance to temperature changes

  • ...

    Voltage

  • ...

    Lifetime



Analog:
Power, w
Light flow, lm
Order the project Consultation of the manager
SpecificationsLED-SVU-P-W2-36(1000W)GRAND MAX 2M CENTRE
Power, W1000
Luminous flux, lm160000/150000
Scattering angle,°120/15,30,60,90
Efficiency, Lm/w160/150
Color temperature, K3000-5000
Possible power range, VAC 100-305, DC 142-431
Environmental humidity, %10-90
Сlimatic modificationU1

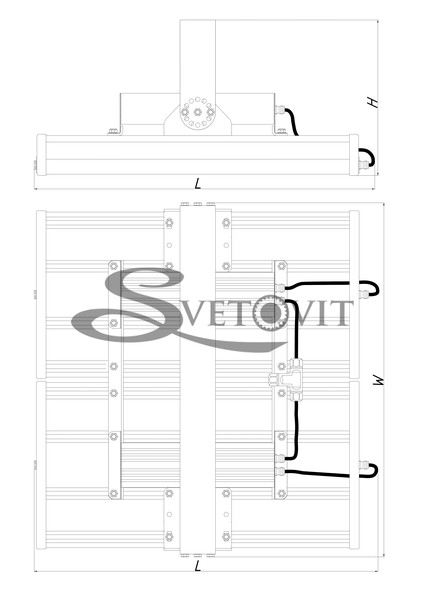

Overall dimensions (LxBxH), mm1020x665x290
Weight, kg46,2/47,9
Body materialanodized aluminum
IDC type - D (120)
IDC type - K (15)
IDC type - K (30)
IDC type - G (60)
IDC type - G (90)
Manufacturing of luminaires with other technical characteristics is possible according to the customer's order
